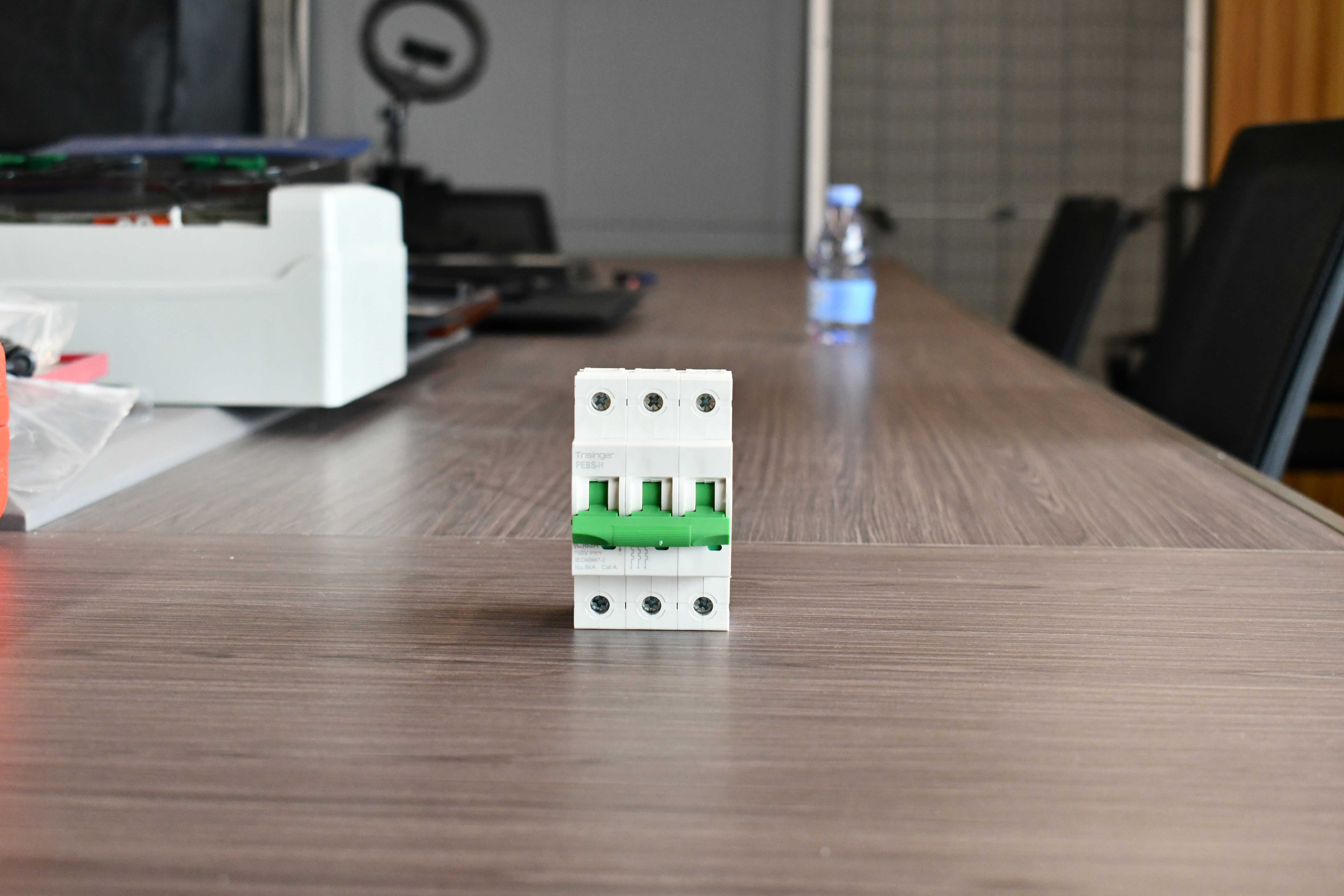

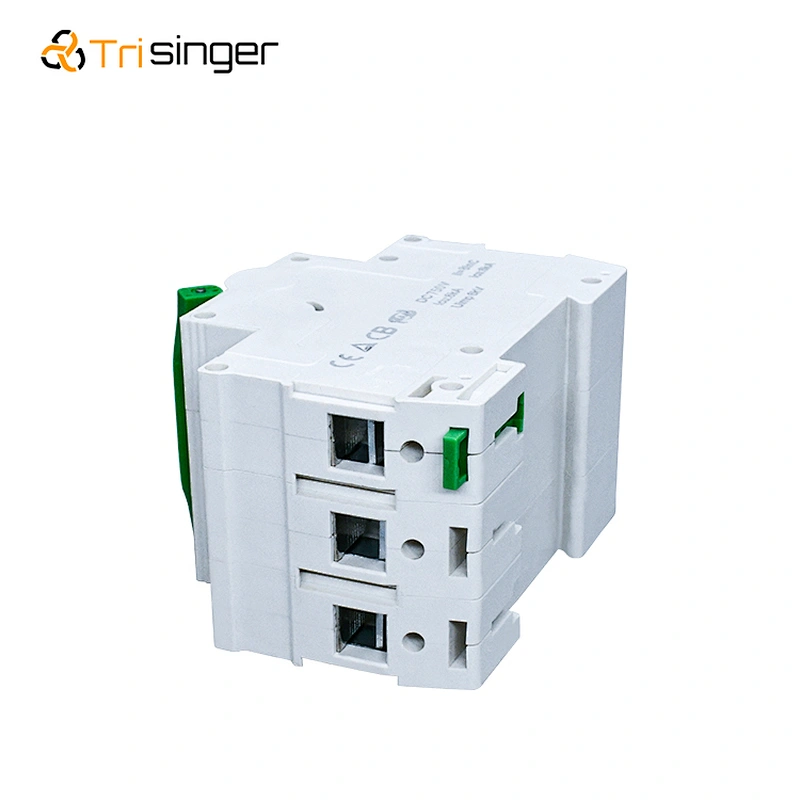

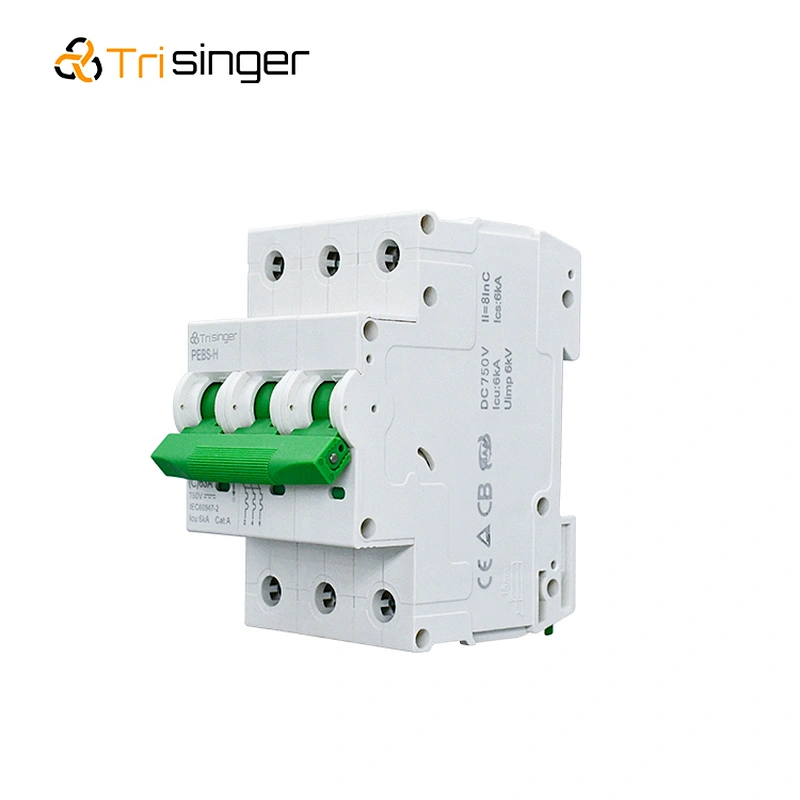

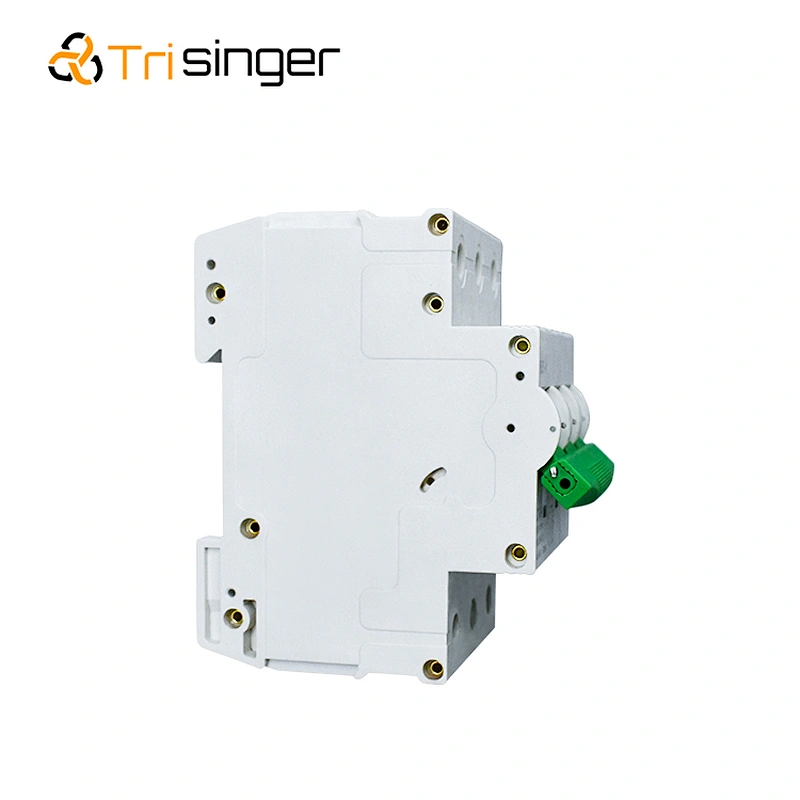

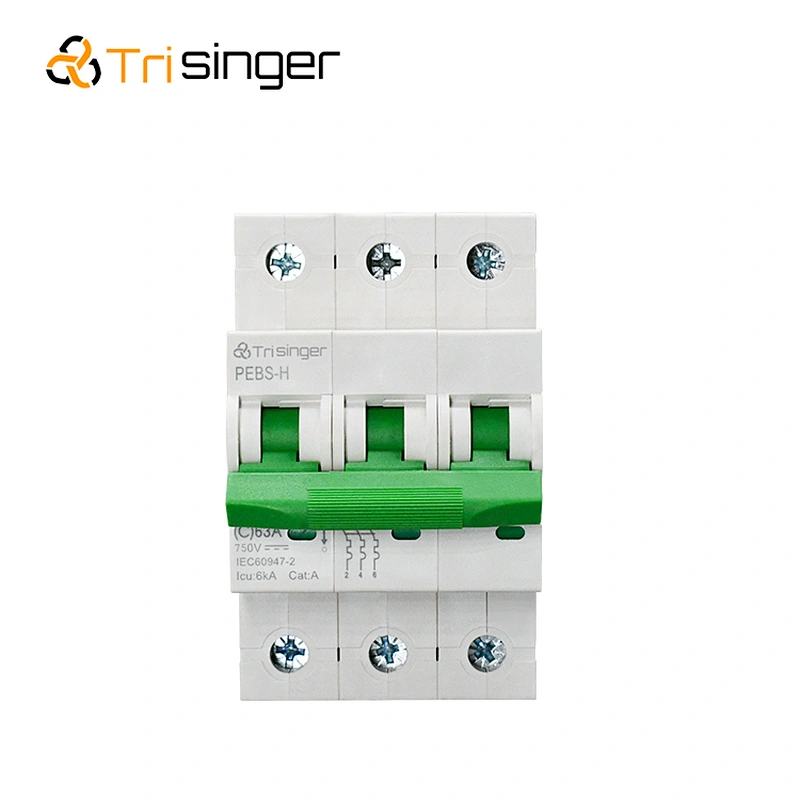

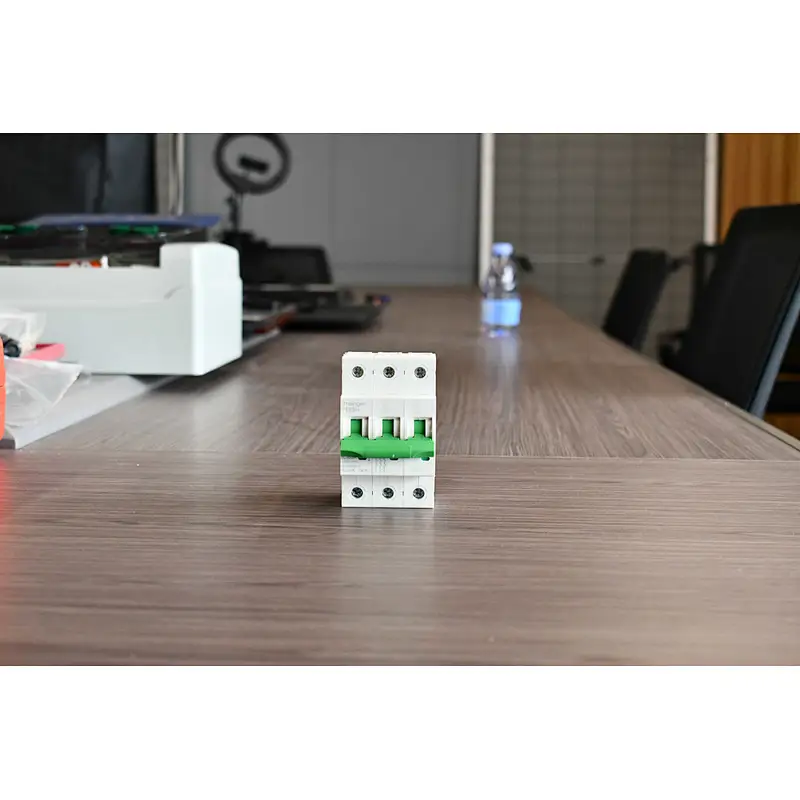

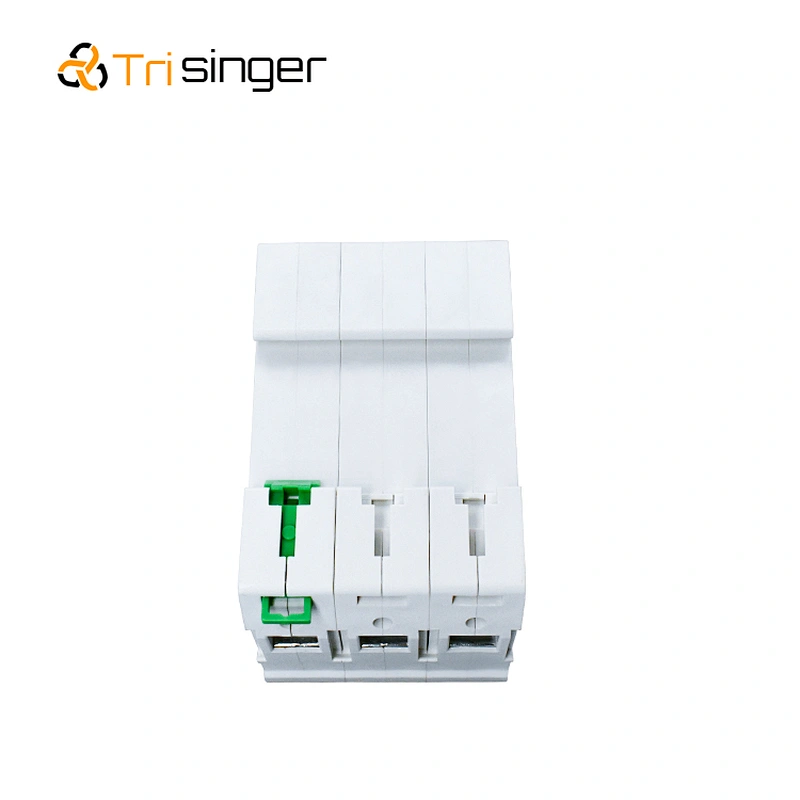

DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker
DC 500V 2P Solar DC Circuit Breaker

DC 500V 2P Solar DC Circuit Breaker

Model NO.
SLOBS-H
Delivery
EXW/FOB/CIF/FCA/DAP
Supply Ability
200000 piece / Month
Country of Origin
Guangdong, China
Stock Time
3-9 Days
Quantity:

Main features:

  • Protection Functions: overload, short circuit
  • Rated short circuit breaking capacity Icu up to 6 kA
  • Non-polarity, Easy wiring
  • Rated Current In up to 63A
  • Rated Voltage Ue up to 1000V
  • Designed for PV, energy storage and other DC applications
  • TUV, CE, CB, SAA, EN 60947-2, AS/NZS IEC 60947.2: 2015
  • Pole: 1P, 2P, 3P, 4P


Technical Data

SL7N PV Series Circuit Breaker
SL7N-63
Frame degree rated current (A)
63A
Ue Rated operating voltage (V DC)
DC 550V
DC 800V
DC 1000V
DC 1200V
Rated Current In (A)
6-10-16-20-25-32-40-50-63
Rated insulation voltage Ui (V DC)
2P: 800V 4P:1200V
Rated Impact voltage Uimp (kV)
4
Ultimate breaking capacity lcu (kA)
6
6
6
6
Run breaking capacity lcs (%lcu)
75%
75%
75%
75%
Curve type
C
Trip type
Thermal-magnetic
MECHANICAL
20000
8500
ELECTRIC
2500
1500
Shunt release (SHT)
Option
Undervoltage release (UNT)
Auxiliary contact (AX)
Alarm contact (AL)
Wiring capacity (mm²)
In≤32A,1∼25mm²,1≥40A,10∼35mm²
Ambient temperature (℃)
-20∼70
Altitude
≤2000
Relative humidity
≤95%
Pollution Level
3
Installation Environment
No obvious shock and vibration
Installation category
Class lll
Installation
DIN Standard rail
