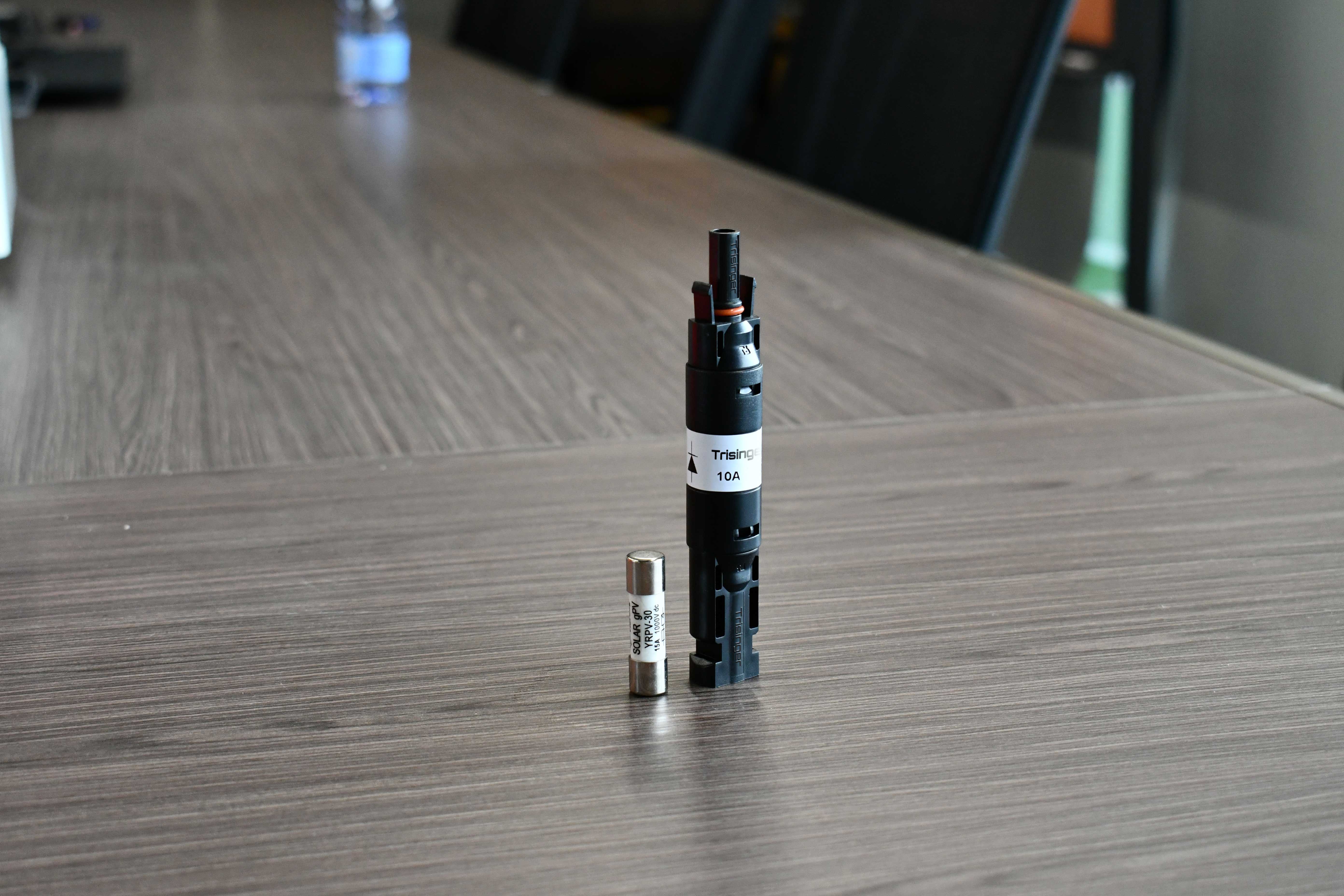

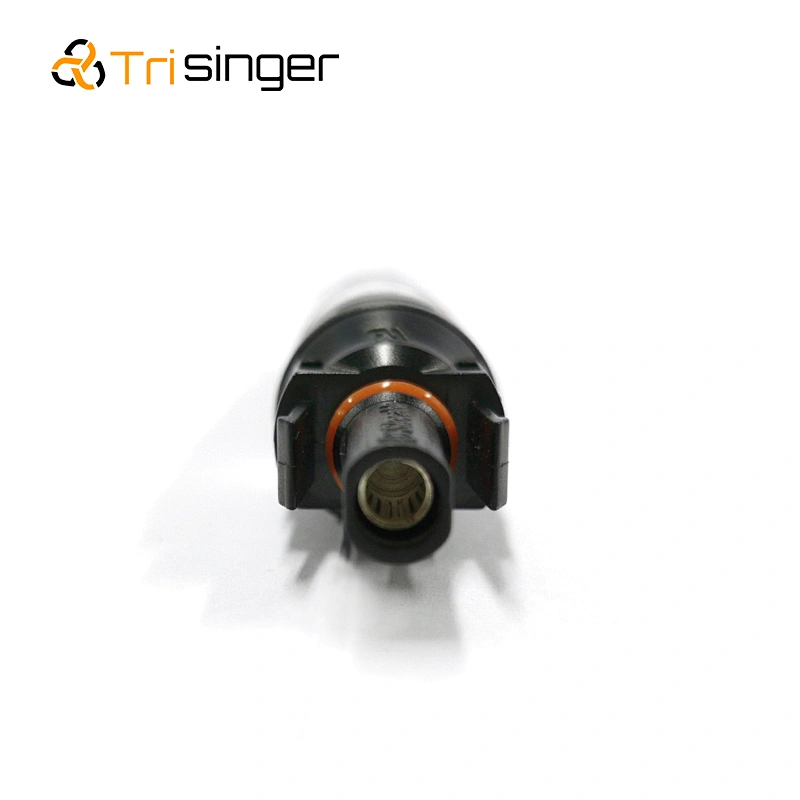

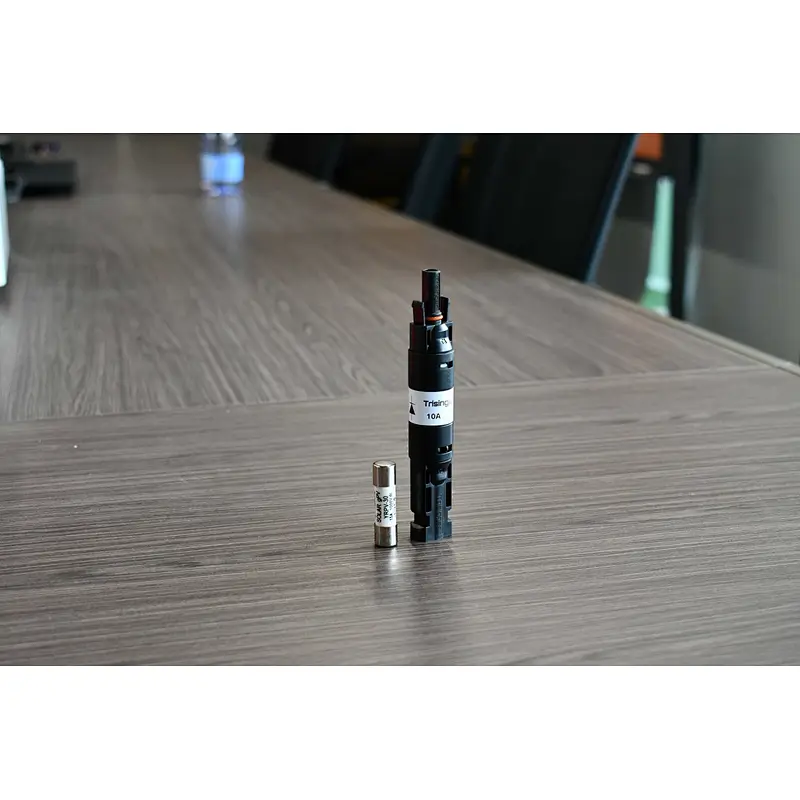

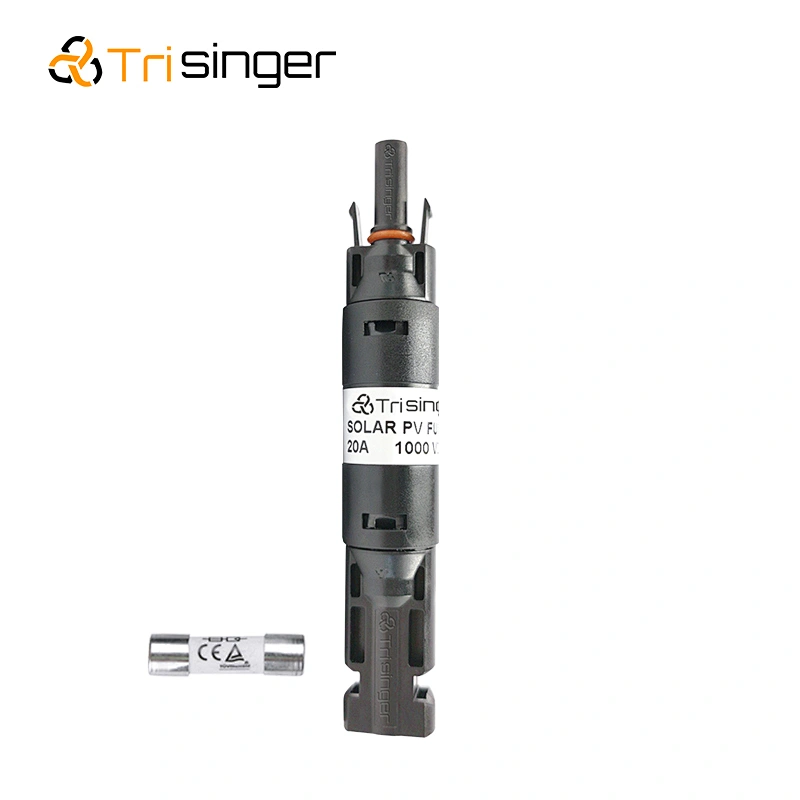

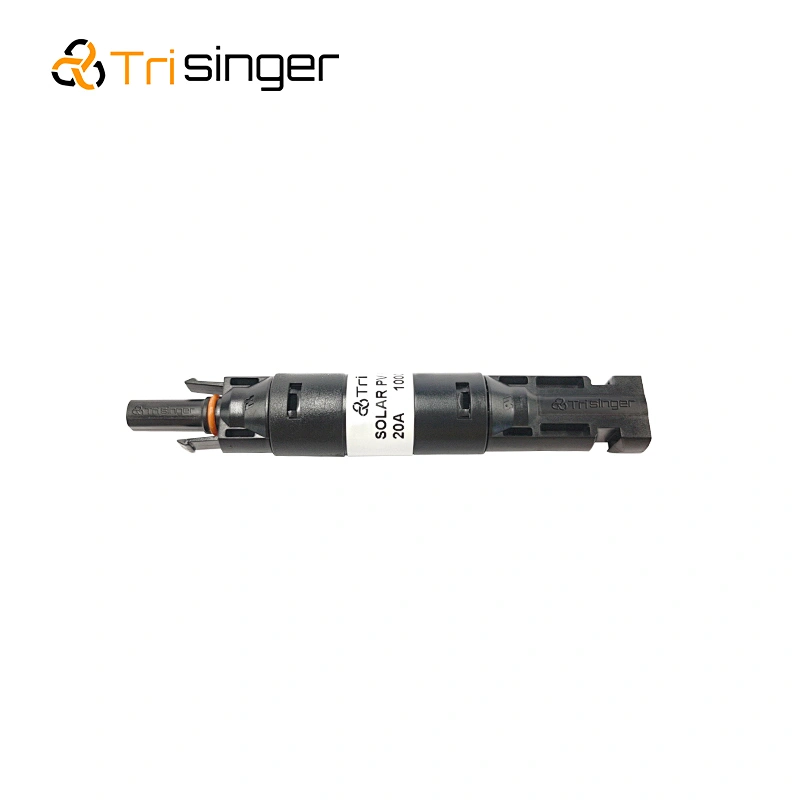

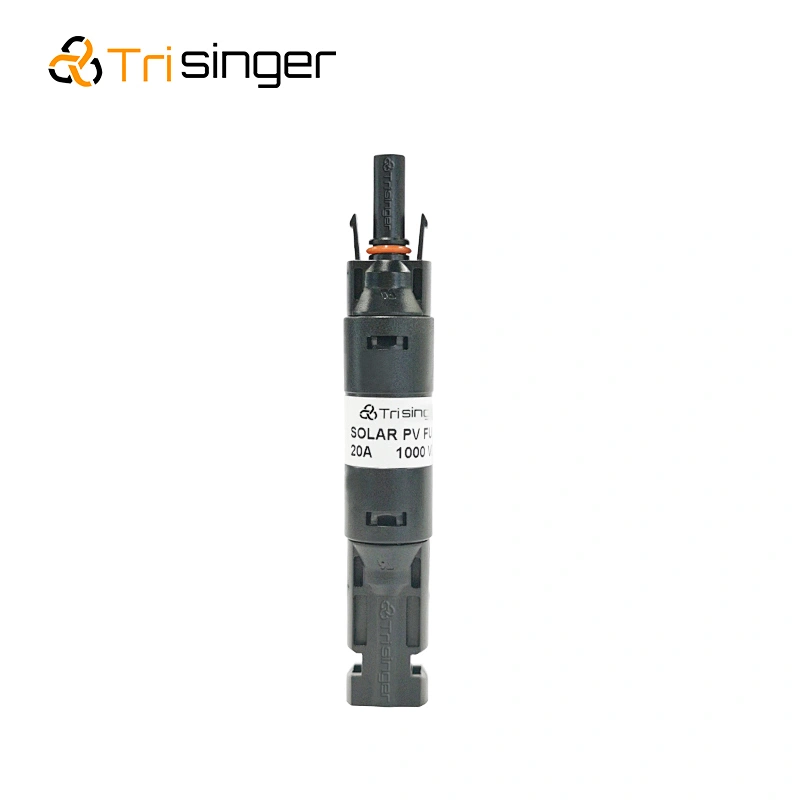

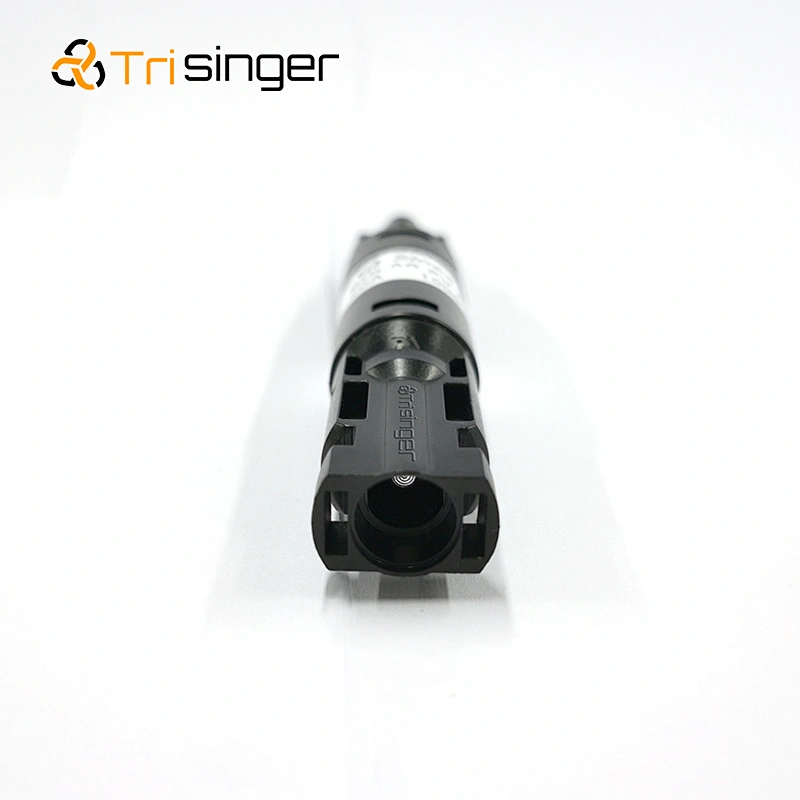

DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector
DC 1000V Inline Fuse Socket Fuse Connector

DC 1000V Inline Fuse Socket Fuse Connector

Model NO.
CN40-FURY-X
Delivery
EXW/FOB/CIF/FCA/DAP
Supply Ability
200000 piece / Month
Country of Origin
Guangdong, China
Stock Time
3-9 Days
Quantity:

Advantages of PV Inline Fuse Holder:

  • Compatible solar connector
  • Simple on-site processing
  • Accomodates different specifications of the FUSE.
  • Fuse can be replaced.
  • Protection class IP68 ensures connection security.
  • High current carrying capacity
  • Patent product






Technicale Data:

 Insulation Material: PPO Contact material: Copper,Tin plated

 Rated current:

 1A~30A

 (According to the fuse)

 Insertion force: Max. 50N
 Rated Voltage: 1000V/1500V DC Withdrawal force: Min. 50N
 Test voltage:   8kV(50Hz,1min)  Ambient temperature  range: -40℃~+90℃
 Contact resistance: <1mΩ Flame class: UL94-V0
 Waterproof protection:  IP68 Connecting system: Crimping connection
 Overvoltage degree:

 CATIII/2

 Suitable cable cross  section:

 2.5/4/6/10mm2,  14/12/10/8AWG
