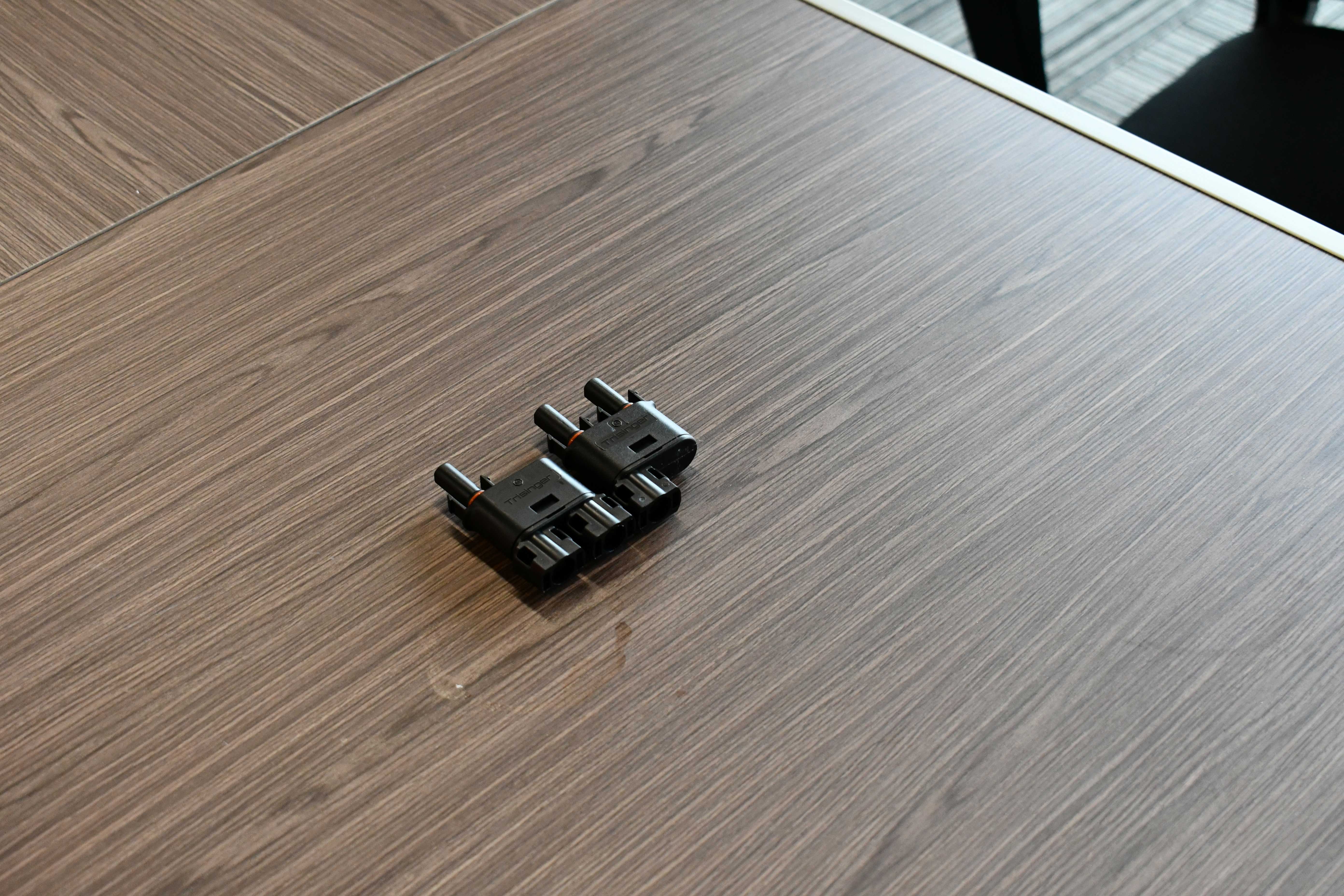

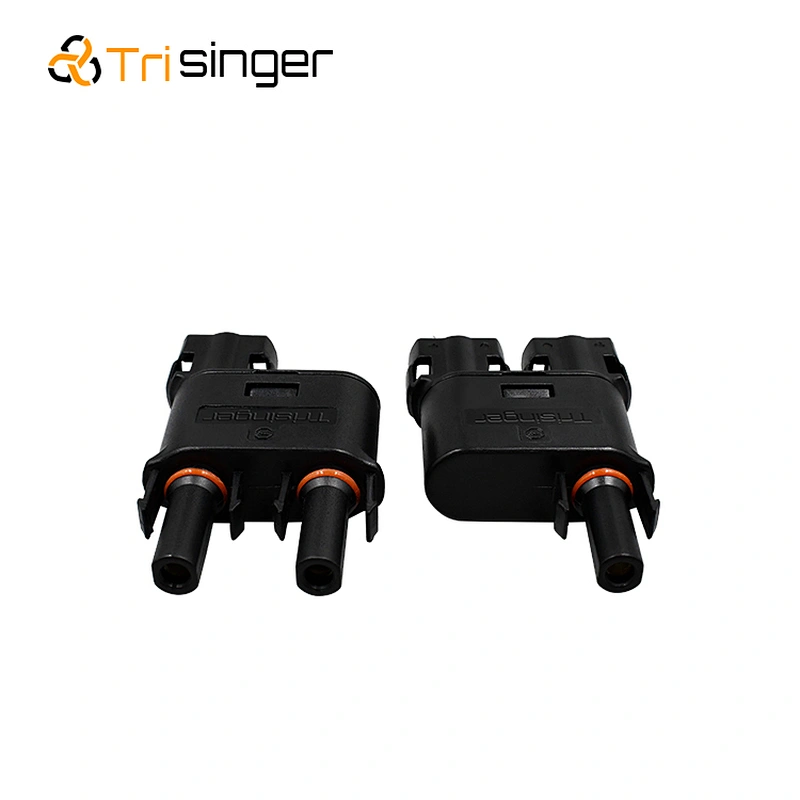

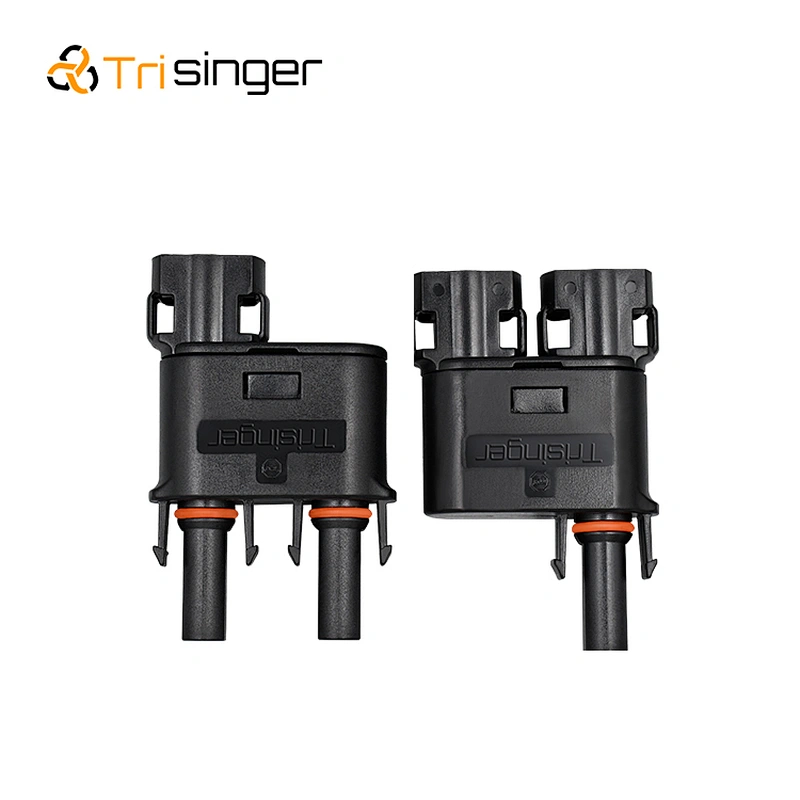

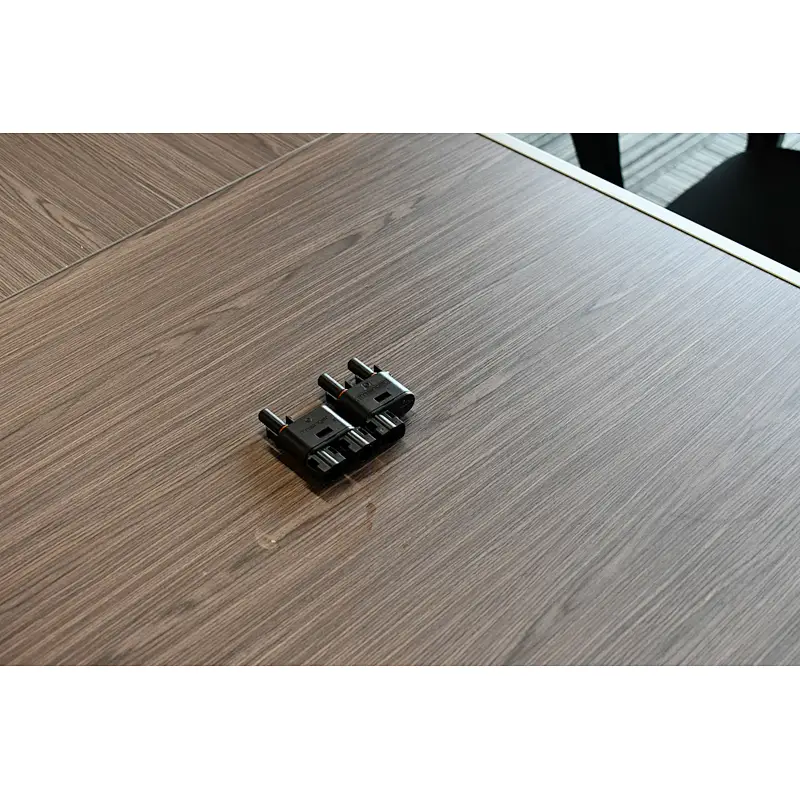

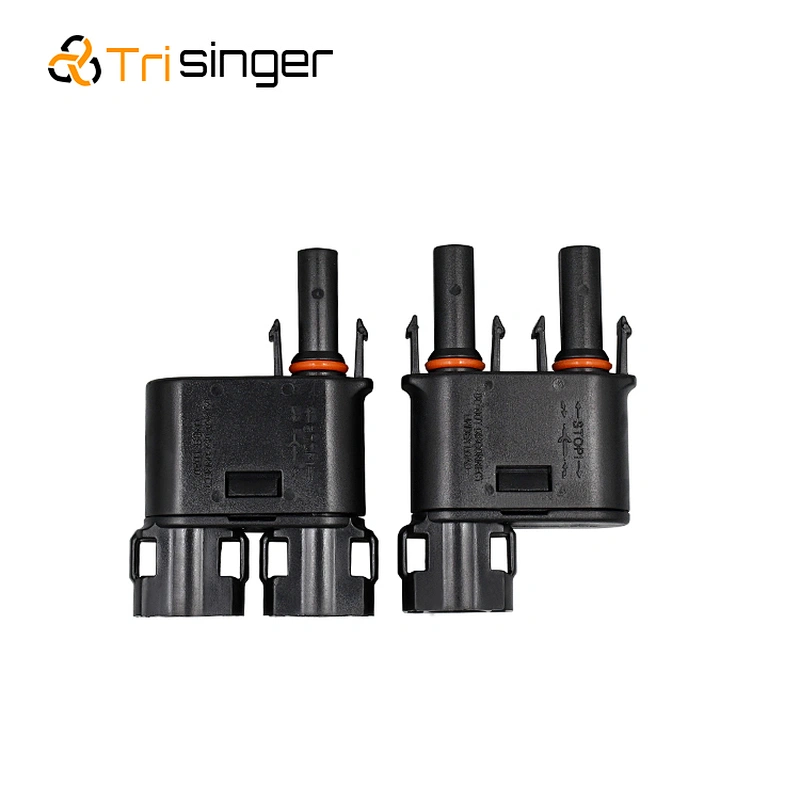

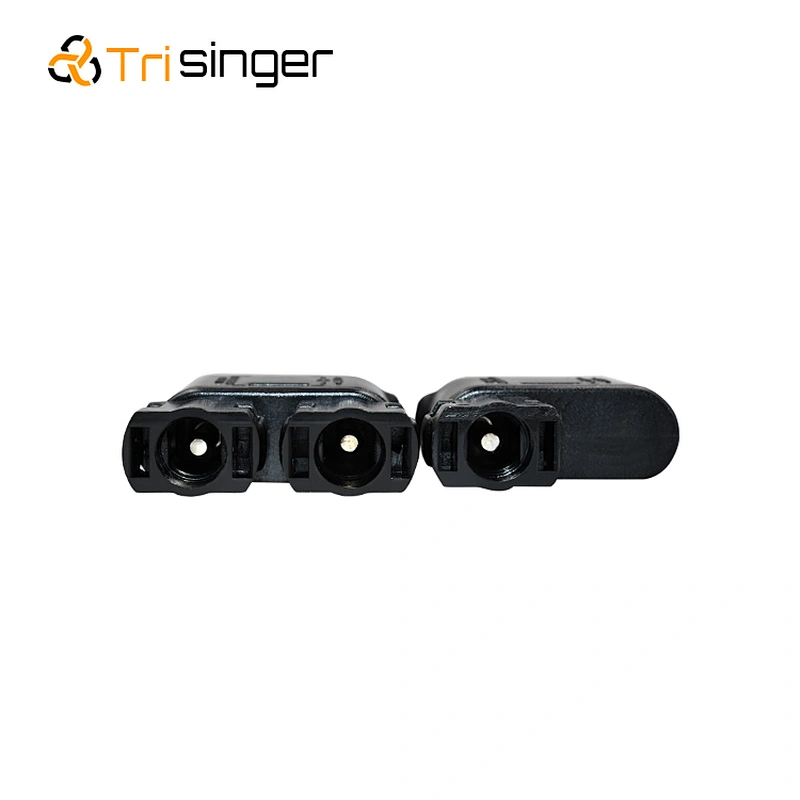

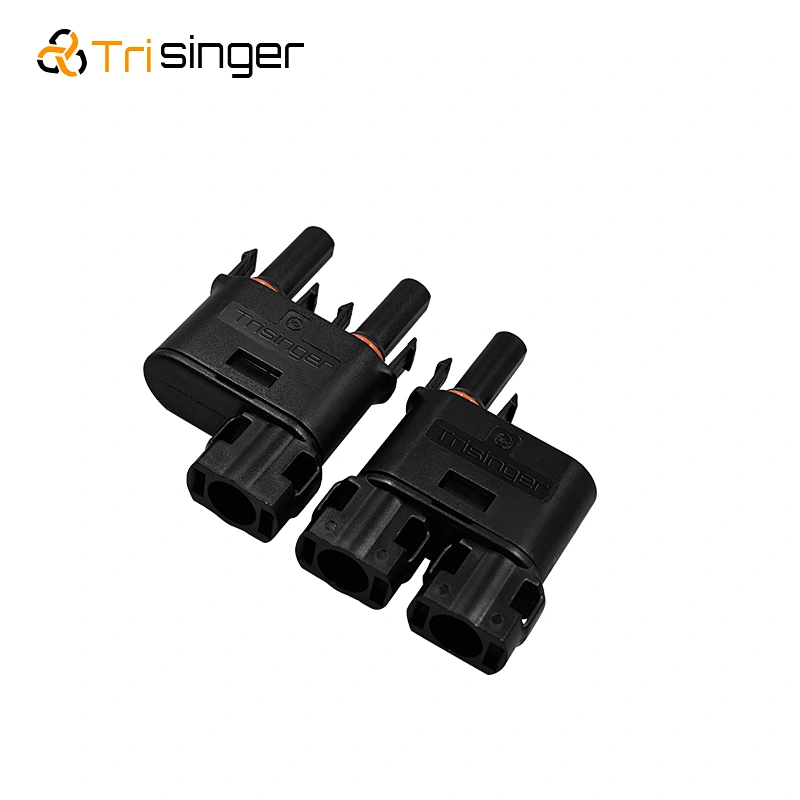

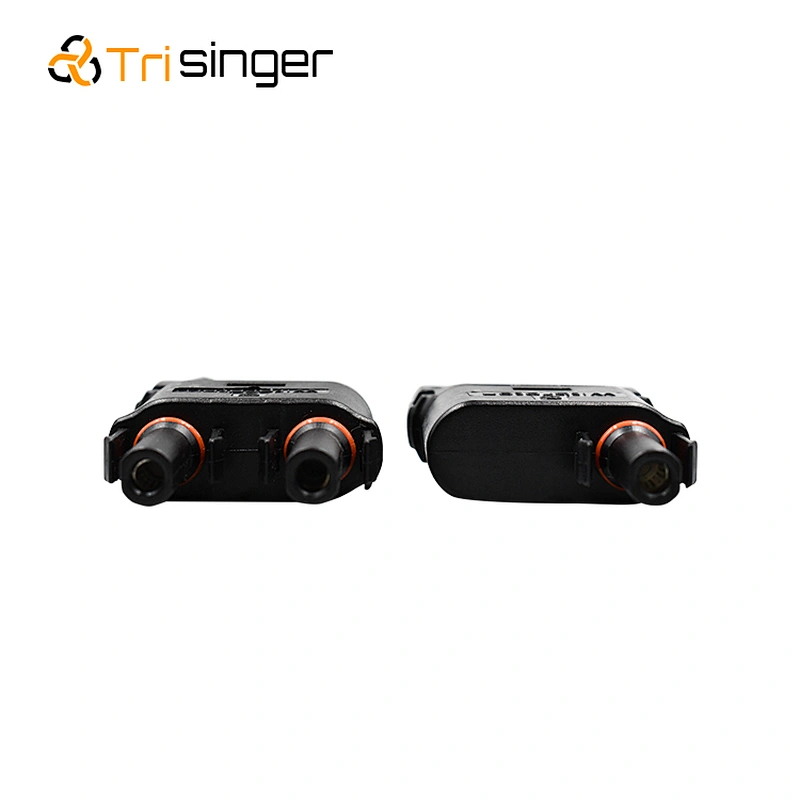

2to1 Branch MC4 Solar Connector

Model NO.: pv004-T2

Quantity:

Product Description

Product Paramenters

Technical Data
Type	PV004-T2	Pollution Degree	IP2X
Rated voltage	1000VDC	Ambient Temperature	-40℃~+85℃
Rated impulse voltage	8000V	Matching with	MC4/PV004
Rated insulation voltage	6000v	Insulation Material	PPO
Rated Current	30A	Flame Class	UL94-V0
PV Connector Standard	EN 62852: 2015 IEC 62852(ed.1)

solar connector Features:

1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting

Parameters:

Item	solar cable connector
Rated current	30A(1.5-10mm²)
Rated voltage	1000v DC
Test voltage	6000V(50Hz, 1min)
Overvoltage type/pollution degree	CAT Ⅲ /2
Contact resistance of plug connector	1mΩ
Contact material	Copper, Tin-plated
Insulation material	PPO
Degree of protection	IP67
Safety class	Ⅱ
Suitable cable	2.5mm², 4mm², 6mm²
Insertion force/withdrawal force	≤50N/≥50N
Connecting system	Crimp connection
